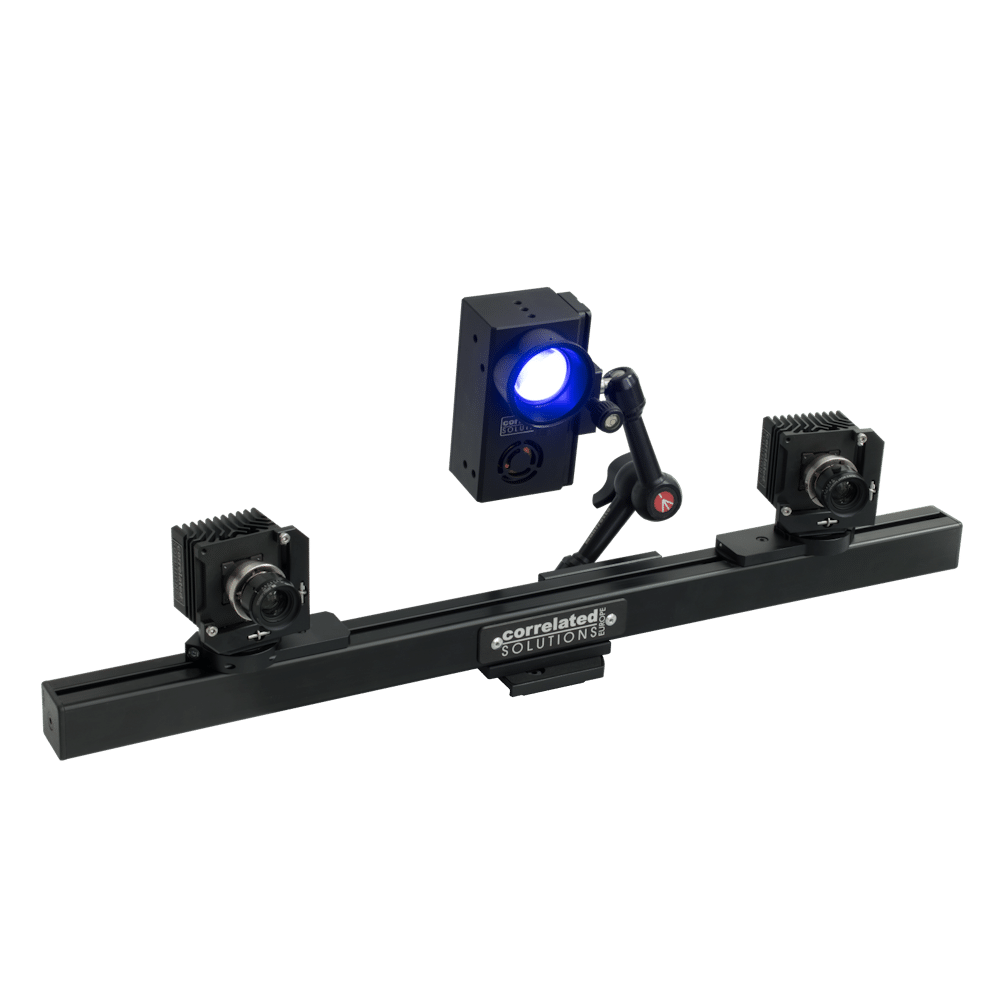

VIC-3D Professional System
The VIC-3D System is a complete, turn-key system for measuring and visualizing of shape, displacement and strain, movements and vibrations of surfaces in three dimensions. It includes all necessary hardware and the most up-to-date software by Correlated Solutions.

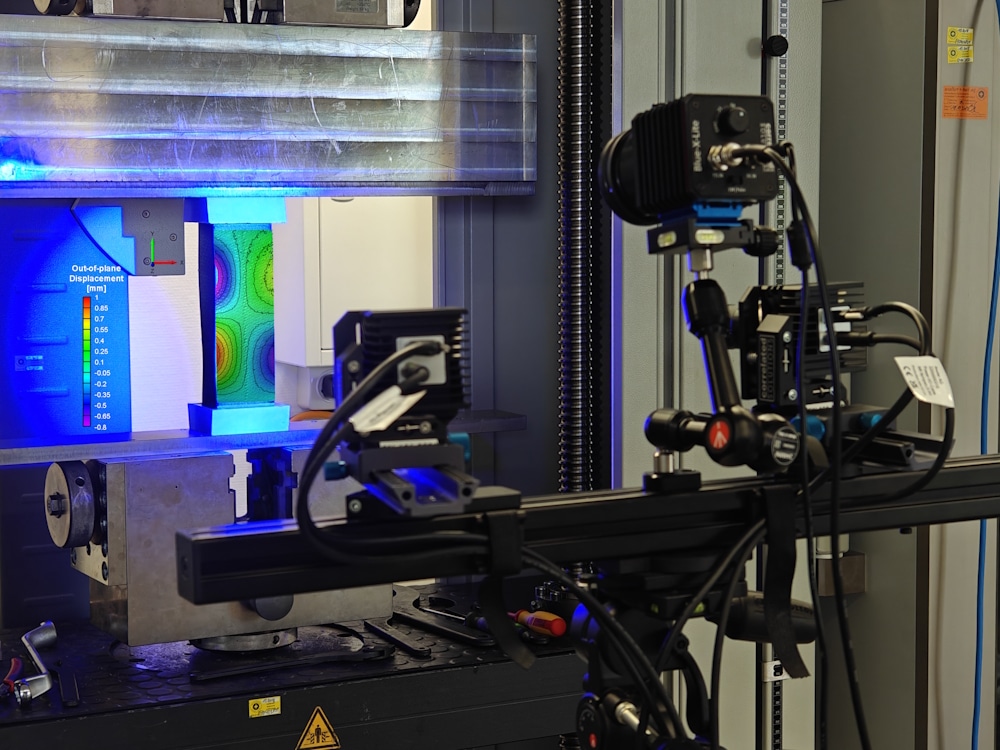

VIC-3D is based on the principle of Digital Image Correlation. Using this method, actual 3D object surface displacement and strains (e. g. the Lagrangian strain tenso) is measured and is available at every point on the specimen’s surface. VIC-3D can measure arbitrary displacements and strains from 50 microstrain to 2000 % strain and above, for specimen sizes ranging from < 1 mm to > 100 m. Setup is simple, requiring only a quick, flexible calibration procedure, and an applied random speckle pattern. No special illumination or lasers are required. And, no specimen contact is required during testing.
Camera Options for VIC-3D Systems
Blue-Falcon Cameras
Special cameras for high precision VIC-3D digital image correlation systems specialized for 3D stereo DIC measurement @ highest spatial resolution.
Blue-Hawk Cameras
Special cameras designed by isi-sys for digital image correlation including the benefit of laser-assisted alignment
USB 3.1 - standard interface
Various resolutions, sensor formats and frame rates (Laptops compatible for easy mobility)
CoaXPress - high performance interface
For high frame rates @ high resolution (Desktop PC recommended)
