VIC-3D High Speed
The VIC-3D HS™ system allows for measurement of very high speed events. As with all of our VIC-3D systems, surface displacements and strains can be measured in 3D. VIC-3D HS systems instead include two fully-integrated high speed cameras.
VIC-Streaming High Speed Stereo-System

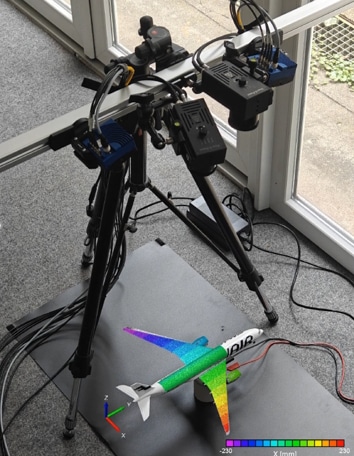

The VIC-Streaming High Speed Stereo-System in combination with VIC-3D and VIC-FFT Modul can be used for Vibration Analysis, Operating Deflection Shapes and Dynamic Applications. The CoaxPress-12 interface of the cameras provides data transfer rates of up to 50 Gbit/s with 4 lanes. An example using cropped images with 0.3 MPX @ 5010 FPS provides a FFT analysis up to excited natural frequencies of 2.5 kHz without aliasing. The system is able to continuously stream to the internal SSD storage of the computer.

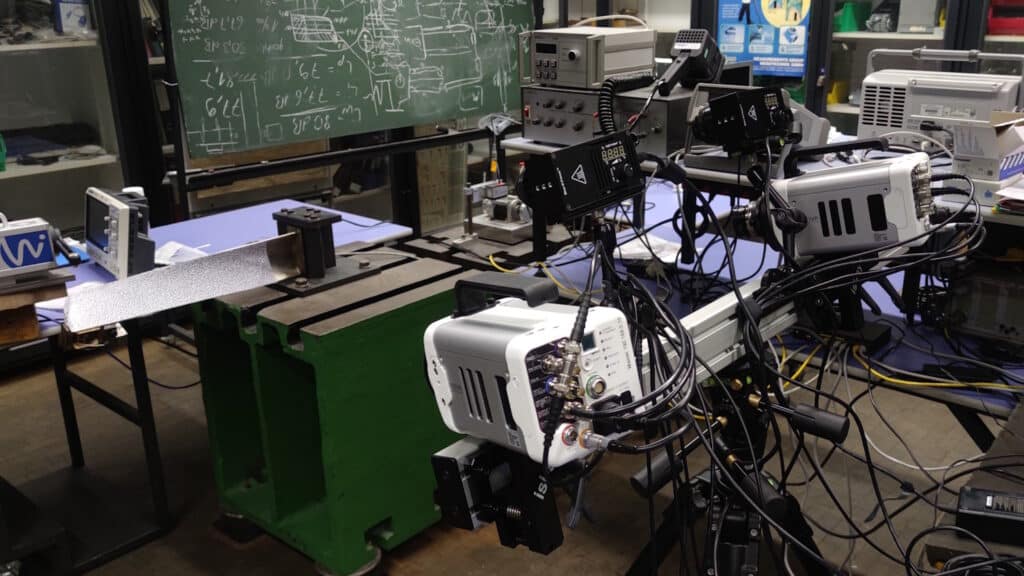

The VIC-software is compatible with high-speed cameras from leading brands such as Photron, Phantom, NAC and Shimadzu. The high-speed range covers frame rates of up to one million frames per second, whereas rates above this are usually categorised as ultra high speed (see below). The High Speed category already covers most high-speed events, such as blasts, high-speed tension and forming tests, operation vibration measurements, and modal analysis.
Non-Contact
- No mechanical interaction with the sample
- Eliminates the need for strain gauges, LVDTs, extensometers, etc.
- Fast and easy sample preparation
- Rigid body motion can be easily removed
- Measure dynamic mechanical properties AND vibration at the same time
User-Friendly
- No optical isolation table needed
- Robust system calibration with automatic target spacing detection
- Remotely control cameras with an iOS or Android device
- Cut & paste graphs and plots into any MS Office application
- Fast data processing with intuitive inspection and extraction too
Full-Field
- Eliminates the need for precise strain gauge placement
- Up to 4,000,000 data points possible
- Automatically identify strain concentration locations, even in complex structures under complex loading conditions
- Fast data processing: up to 55,000 data points / second
Ultra High-Speed
The VIC software directly supports the Ultra High Speed camera series from Photron (Pharsighted), Phantom TMX and Shimadzu. This covers not only a wide range of frame rates but also different performance, benefits and system cost. Based on our experience, we can advice and recommend a suitable solution from this wide range of High Speed cameras. Please ask our specialists.
High-Speed Cameras
In addition to our complete DIC system solutions, we also offer selected high-speed cameras as standalone products. While most cameras are supplied as part of our fully integrated DIC systems, certain models from specific manufacturers are available separately upon request.
