VIC-2D System
VIC-2D can measure in-plane displacements and strains on planar specimens. The setup is simple, for sample preparation only the application of a random speckle pattern is necessary. No special illumination or lasers are required.
The VIC-2D system is used where strain distributions need to be measured on flat specimens. Applications include fracture mechanics (COD measurement), bi-axial tension tests of films, determination of strain localization around cracks or notches as well as many applications in FE model verification.
- White-light system
- No calibration required real-time data processing (> 50 Hz)
- Sample size < 1 mm and > 10 m possible
- Simple specimen preparation using paint
- Synchronized load data acquisition
- Available analog output for machine control
- Very high strain and displacement limits
Digital Image Correlation
Other DIC Products

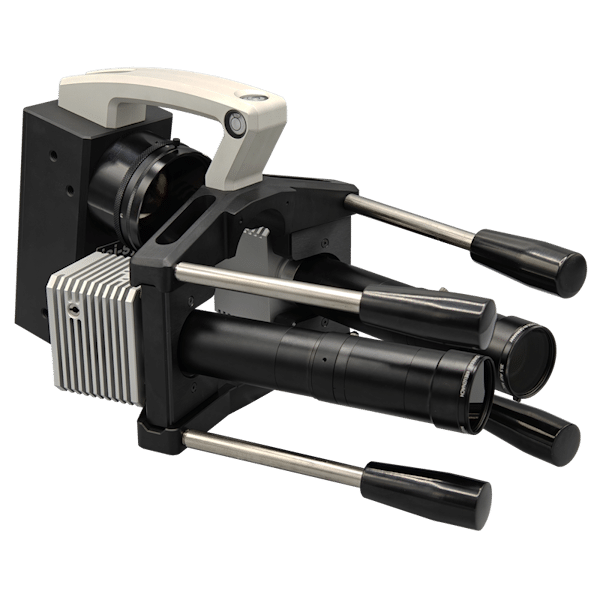

3D-Micro-DIC
Blue-Hawk-System

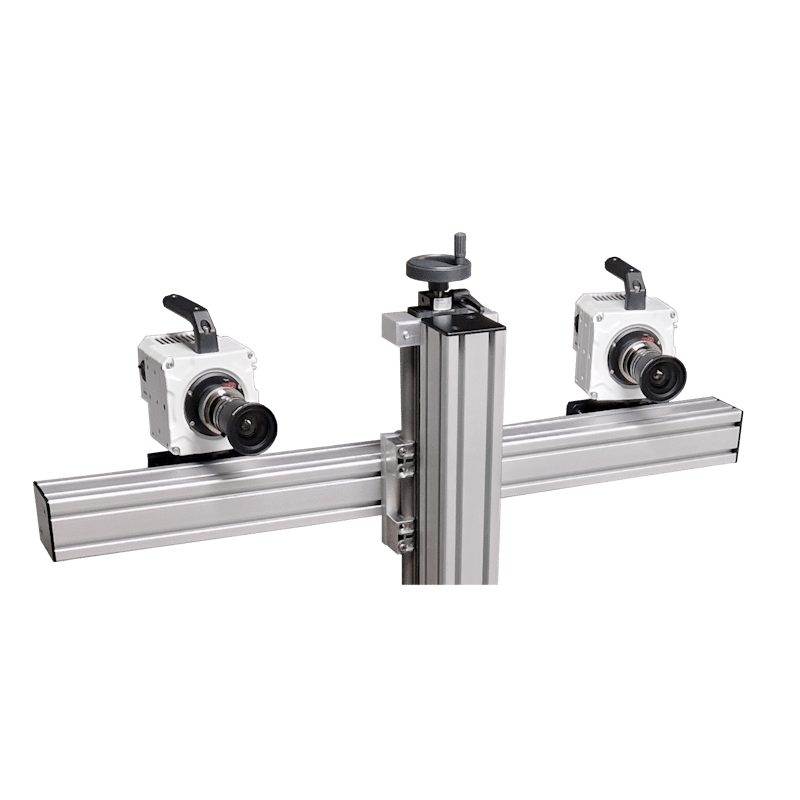

High-Speed

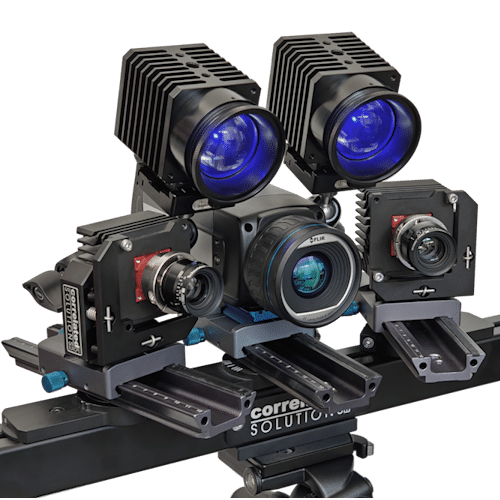

IR-Systems

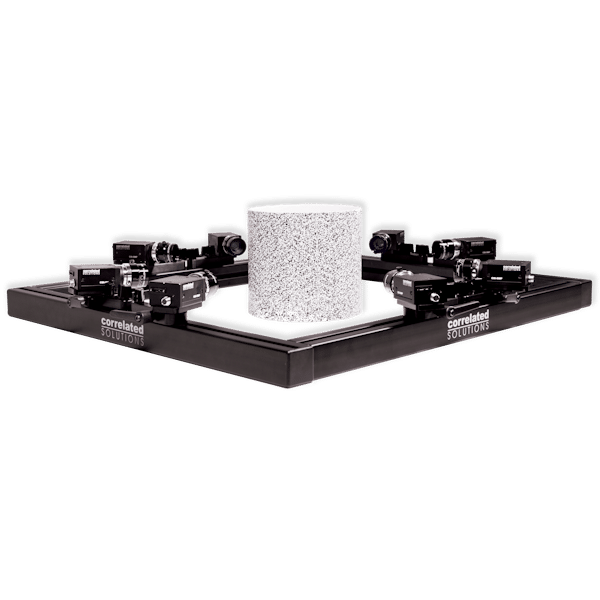

Multisystems
