VIC-Volume
VIC-Volume is an advanced 3D digital volume correlation solution that enables precise internal displacement and strain analysis from volumetric imaging data.

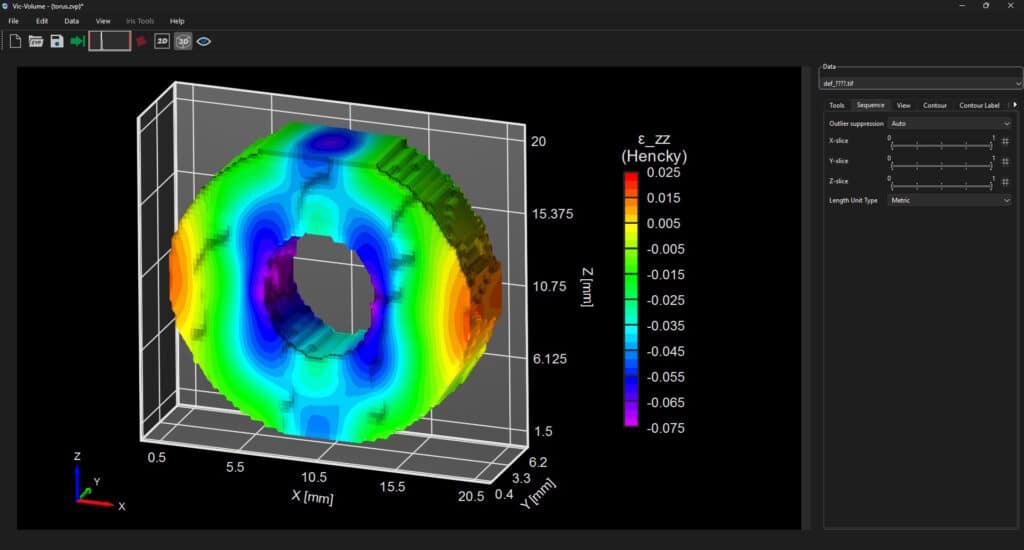

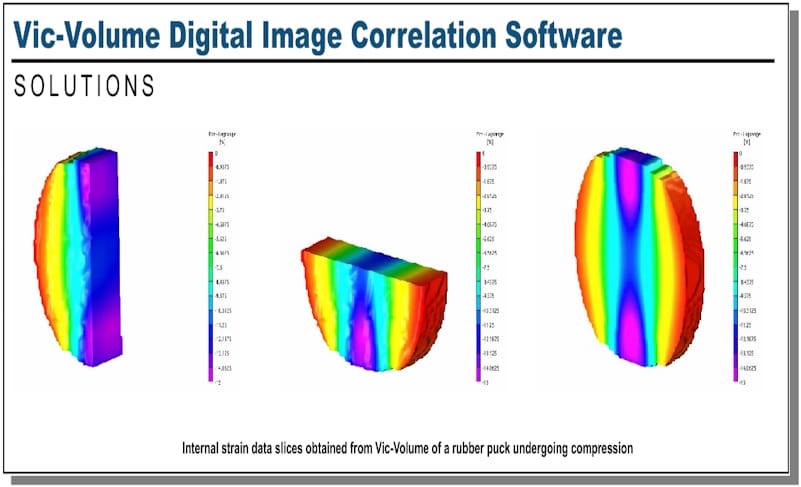

VIC-Volume utilizes volumetric images from X‑Rays or CT-Scanners to measure internal deformation of a specimen under an applied load. It analyzes the acquired images to create three-dimensional volumetric displacement and strain data of the specimen’s internal behavior. The resulting data is a full-field contour plot of the deformation data that can be viewed, animated, and extracted for FEA validation. The image below displays the internal strain (Ezz) of a rubber puck undergoing compression.
Features
- Convenient AOI selection method through “Tweening’’
- Semi-automatic initial guess computation
- Optimized for accuracy reduce non-linear optimization to reduce bias and interpolation artifacts
- Highly Advanced memory management permits analysis of huge volumetric data sets
- Volumetric 3D displacements & strains
More information
For more information, contact us or visit our partner Correlated Solutions’ website.
