VIC-Gauge

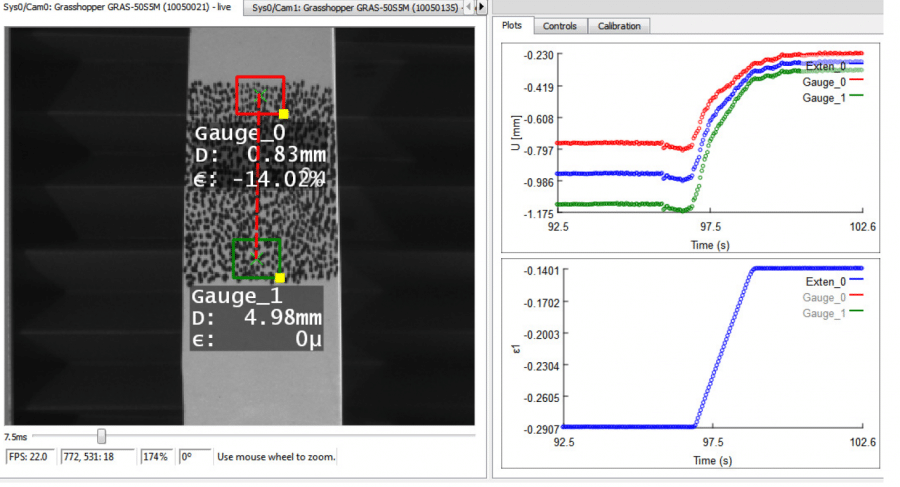

VIC-Gauge uses our optimized 2D and 3D correlation algorithms to provide real-time displacement and strain data for mechanical testing. Think of this tool as a set of virtual strain gauges: Data can be retrieved for multiple points and plotted live against analog load inputs. Results are saved for every analyzed point, and full images may be saved for full-field analysis in VIC-2D or VIC-3D.

The VIC-Gauge 3D system is offered as a turnkey strain measurement solution that doubles as a video extensometer and virtual strain gauge. The system performs a three-dimensional digital image correlation (DIC) analysis on a pair of images in real-time, processes the data, an then outputs a control signal. The measurements are displayed graphically, but also as virtual gauges values. The system utilizes the same robust and precise algorithms found in the VIC-3D system, and the same ease of use.
