Vibration Mode Analysis of a Mobile Phone

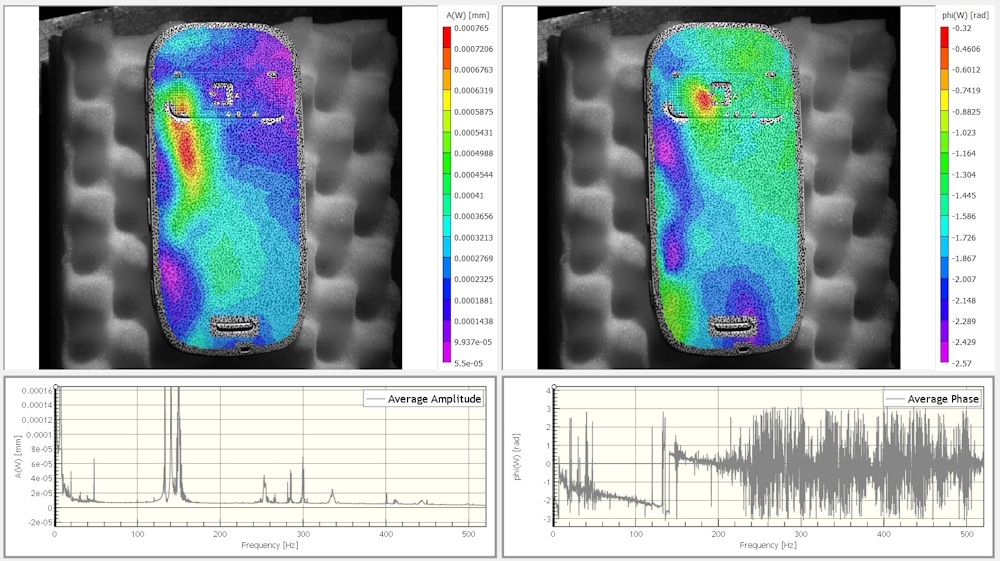

This article describes the measurement and analysis of the operation deflection shapes and rigid body vibration motions of a mobile phone excited by its vibration alert. The measurement is done, using a non-contact, 3D, full-field, high-speed stereo image correlation system in combination with the VIC-3D FFT module. It analyzes the recorded deformation data in the frequency domain by phase-separation method.

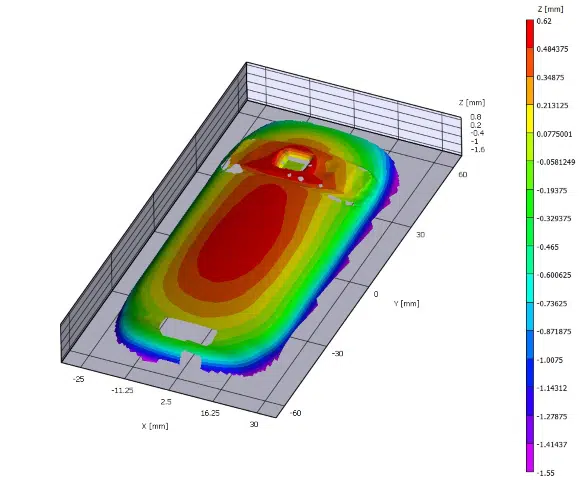

The measured deformations and displacements during the vibration alert are evaluated against the reference state for each stereo image pair. In this case the recording time covers about 5,5 seconds with 1000 FPS corresponding to about 5500 single measurements.
