LED Light Sources
Blue-X-Focus

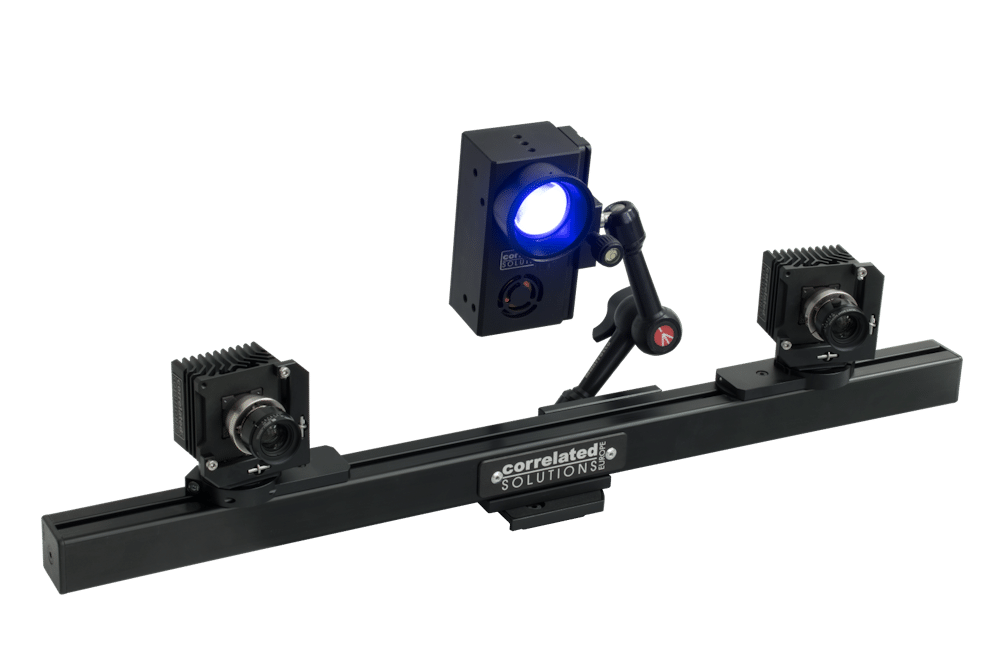

The Blue-X-Focus is a powerful LED light source, especially designed by isi-sys for Digital Image Correlation.
Features
- High Power
- focus-able, flicker free light
- Pulse operation up to 100 kHz (rising time < 100 ns)
- Wire Grid Polarization filter
- made by isi-sys GmbH
Features of Blue-X-Series
- The short wavelength and small bandwidth improves the optical transfer function of lenses by reducing chromatic aberrations and diffraction.
- The pulse mode down to ultra short pulse length reduces motion blur and maximizes light power at lowest possible heat input to the object surface.
- Special (wire grid) polarisation filters enable high power polarized light output for suppression of direct reflections (Standard types sufficient for Blue-X-Lite).
- Suitable wave length for applying the new Fluorescence speckle method.
- The short wavelength can be used in combination with bandpass filters for measuring on hot samples.
- Large beam expansion range from 7.5° to 60° for small to large field of view. Operation through small windows.
- Highly focusable beam for maximum power even at small and very small FOVs.
Product inquiry
- Tailored solutions for your measurement needs
- Fast and non-binding quotation
- Expert consultations for complex applications
Measurement Services
Whether you need a one-time measurement or want to assess the suitability of our systems for your application, we offer flexible measurement services, on-site at your facility or in our lab, tailored to your needs.
